Key Features

The Hegel C53 is a high-performance 3-channel power amplifier specifically engineered for the most critical components of a home cinema: the front left, right, and center channels. Delivering 150W per channel into 8 ohms (and doubling to 300W into 4 ohms), the C53 ensures that the “front stage” of your theater possesses the same transparency, power, and musicality as Hegel’s renowned stereo amplifiers. By housing three independent mono amplifier blocks within a single chassis, the C53 eliminates crosstalk and provides the massive current reserves needed to handle explosive cinematic peaks and delicate musical passages with equal finesse.

The technical foundation of the C53 is Hegel’s patented SoundEngine 2 technology. This error-canceling platform works in real-time to identify and eliminate distortion, resulting in an exceptionally clean signal and a damping factor of over 2000. This high damping factor allows the C53 to exert absolute authority over speaker drivers, ensuring that bass is tight and punchy while dialogue remains crisp and natural. Because the SoundEngine technology allows the amplifier to run efficiently with low bias, the C53 remains cool during operation, making it a reliable choice for enclosed rack environments.

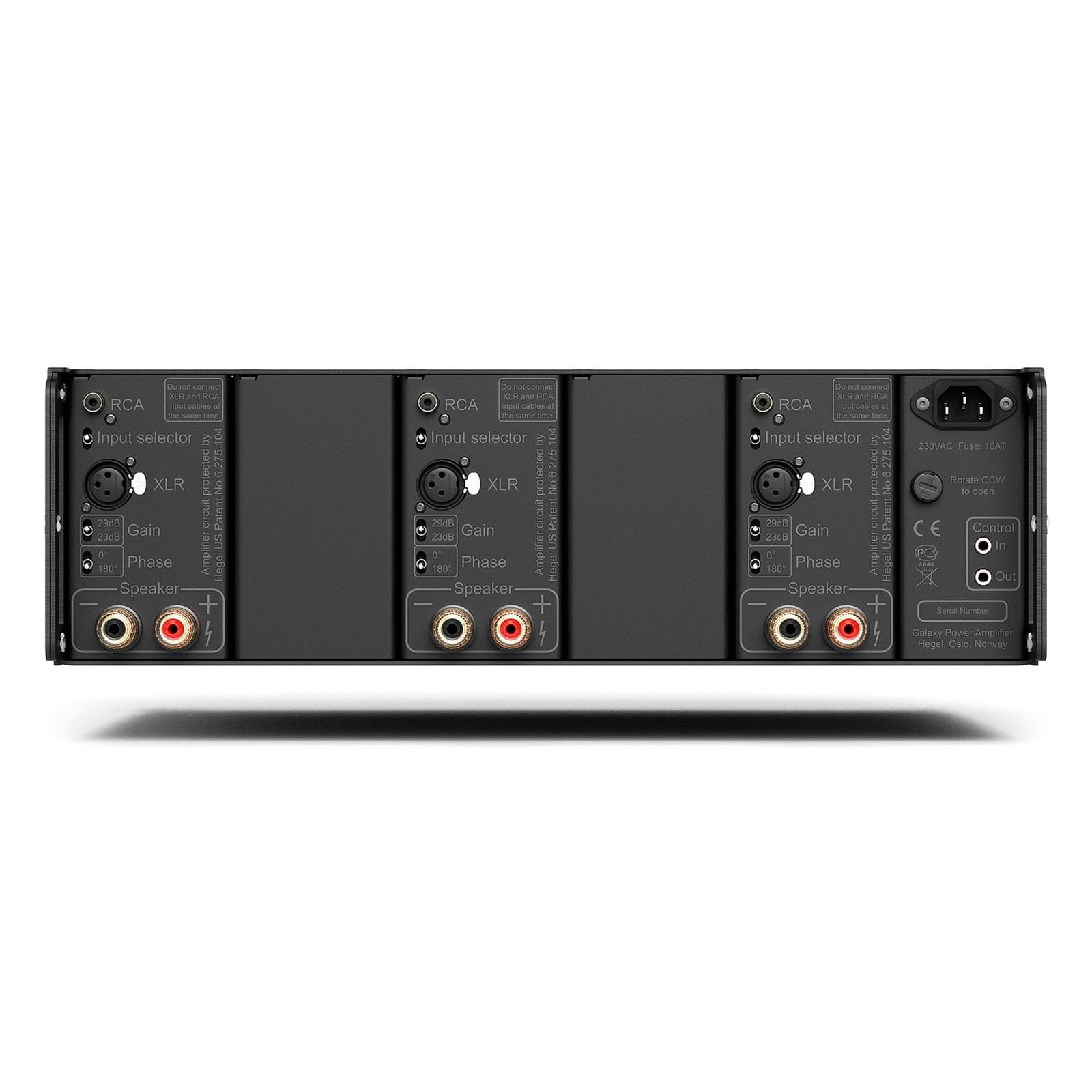

Designed for professional-grade custom installations, the C53 features a 3U rack-mountable chassis with integrated rack ears. It offers installers a high degree of flexibility, including individually switchable gain and phase controls for each of the three channels, allowing for precise acoustic calibration and seamless integration with existing processors. With both balanced XLR and unbalanced RCA inputs, plus 12V trigger connectivity, the Hegel C53 is the definitive choice for enthusiasts who want to bridge the gap between high-end 2-channel hi-fi and immersive multi-channel cinema.

Product Specifications

Power output: 3 x 150/300/600 W into 8/4/2 ohms @ 1kHz 1% THD, 100/120/230V AC
Minimum load: 2 ohms
Analog Inputs: 3 x balanced (XLR), 3 x unbalanced (RCA)
Control Inputs: 1 x mini-jack 5-12 V trigger
Control Outputs: 1 x mini-jack 11,9 V trigger out
Gain control: Switchable between 23 dB or 29 dB (individual)
Phase control: Switchable 1/180 (individual)
Frequency response: 5 Hz – 100 kHz
Signal-to-noise ratio: More than 100 dB
Crosstalk: Less than -100 dB
Distortion: Less than 0.01% @ 100W 8 Ohms 1 kHz
Intermodulation: Less than 0.01% (19 kHz + 20 kHz)
Damping factor: More than 2000 (main power output stage)
Net Weight: 28,5 kg
Gross Weight: 34 kg
Net Weight US: 61 lbs
Gross Weight US: 75 lbs
Dimensions note: For precise installation dimensions, refer to user manual
Dimensions: 48,2 cm x 13,2 cm x 52 cm (BxHxD incl handles, ex feet)
Dimensions US: 18.97 in x 5.2 in x 20.47 in (BxHxD incl handles, ex feet)
Special features: Balanced and unbalanced inputs, Trigger in/out, Modular design, Adjustable rear rack mount, Gain & Phase selectors
